FES150S

FES 150S/030/035

EXQUISITE SMALL & EASY TO USE

Mini size with strong suction

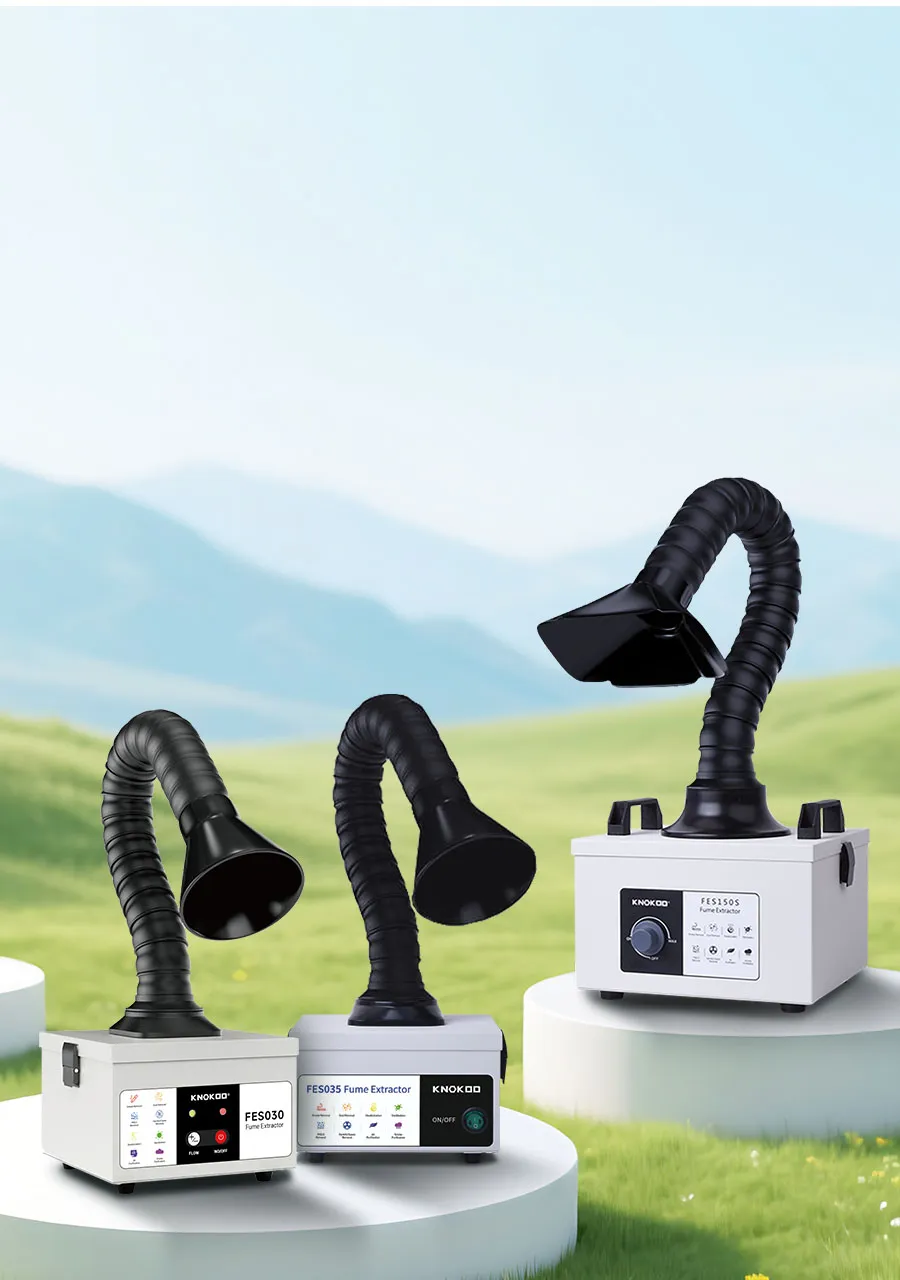

FES 150S/030/035

FES 150S

POWER:  100W

AIR FLOW:   200m3/h

FES 030/035

POWER:  35W

AIR FLOW:   138m3/h

FES 150S/030/035

THREE LEVEL FILTERING

FES 150S

THREE LEVEL FILTERING

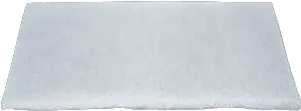

1Pre filter

Dust, debris and other large particles(PM60)

Pre filter

Two-in-one filter module

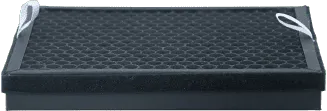

2Activated carbon(front)

Small molecules, odor molecules, etc

Activated carbon

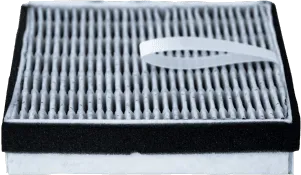

3Main filter(back)

Fine particles such as dust and asbestos, and Adsorption of tar and other substances(≥0.3μm)

Main filter

FES 030/035

DOUBLE LEVEL FILTRATION

1Pre filter

Dust, debris and other large particles(PM60)

Pre filter
2Main filter

Fine particles such as dust and asbestos, and Adsorption of tar and other substances(≥0.3μm)

Main filter

Its sound is as beautiful as the wind blowing the leaves

Its sound is as beautiful as the wind blowing the leaves
STANDARD ACCESSORIES

FES030

FES030
Machine*1

Machine*1

  • Primary Filter Cotton*4
  • Main filter*1

  • Primary Filter Cotton*4

  • Main filter*1

  • 0.48M Bamboo Pipe*1
  • Round Nozzle*1
  • Power Cable*1

  • 0.48M Bamboo Pipe*1

  • Round Nozzle*1

  • Power Cable*1

FES035

FES035
Machine*1

Machine*1

  • Primary Filter Cotton*4
  • Main filter*1

  • Primary Filter Cotton*4

  • Main filter*1

  • 0.48M Bamboo Pipe*1
  • Round Nozzle*1
  • Power Cable*1

  • 0.48M Bamboo Pipe*1

  • Round Nozzle*1

  • Power Cable*1

FES150S

FES150S
Machine*1

Machine*1

Primary Filter Cotton*4

Primary Filter Cotton*4

  • Two-in-one main filter *1 (front + back)
    • +
  • Two-in-one main filter *1 (front + back)

Two-in-one main filter *1 (front + back)

  • 0.67m Universal Tube *1

    0.67m Universal Tube *1

  • Round Nozzle*1

    Round Nozzle*1

  • Power Cable*1

    Power Cable*1

PRODUCT DETAILED PARAMETERS

  • INPUT VOLTAGE

    POWER

    PORT DIAMETER

    AIR FLOW

    FILTER LAYERS

    NOISE

    PIPE LENGTH

    FILTRATION EFFCIENCY

    DISPLAY MODE

    DIMENIONS

    NET WEIGHT

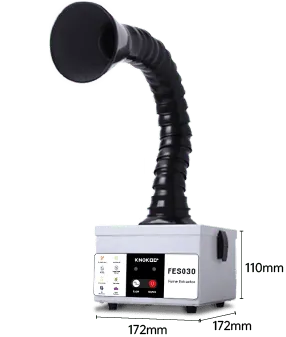

  • FES030
    FES030
    BUY

    AC 110V/220V

    35W

    Φ75

    138m3/h

    2 Layer

    30-50dB

    0.48m

    >0.3μm 99.97%

    LED Indicator

    172*172*110mm

    1.61kg

    FES035
    FES035
    BUY

    AC 110V/220V

    35W

    Φ75

    138m3/h

    2 Layer

    30-50dB

    0.48m

    >0.3μm 99.97%

    LED Light Switch

    172*172*110mm

    1.61kg

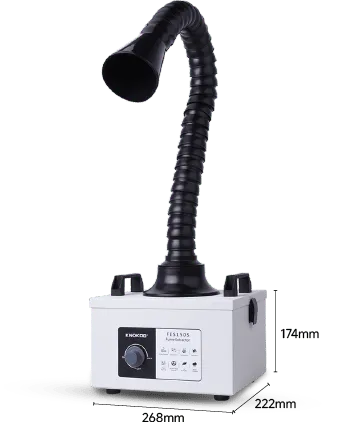

    FES150S
    FES150S
    BUY

    AC 110V/220V

    100W

    Φ75

    200m3/h

    2 Layer

    30-50dB

    0.48m

    >0.3μm 99.97%

    Knob

    268*222*174mm

    8kg

  • FES030 & FES035:
  • 1.Built-in air filter- The laser fumes and soldering smoke and harmful gas generated by welding,soldering,nail salon, laser, it can be filtered through the carbon Filter high efficiency filter layer to achieve 99.97% filtration and purification effect.Air circulation filter can prevent indoor fume from being discharged to the outside directly, achieving smoke absorb and purify air..
  • 2.Universal smoking pipe- Smoking pipe-360-degree universal adjustment, no need for external support. Can adjust the length of the pipe freely, adjustable air volume, directional adjustment of the air duct, and free positioning.
  • 3.High performance motor--High-power brush-less DC motor to provide large air volume while keep low noise.High inhalation force and high smoking efficiency.
  • 4.Mini size body-The workbench at home, the company's production line, improve your work space utilization, without worrying about machine placement problems.Installation is simple and convenient, no additional pipes are needed, saving space.
  • 5.High efficiency filter to absorb the fume effectively, provide you with a fresh and comfortable working environment. The primary, medium and main filter elements can be replaced separately, which prolongs the service life and reduces the use cost.
  • FES150S:
  • 1.THREE STAGEFILTRATION SYSTEM- KNOKOO fume extractor continuously exhaust the welding fume and lead mist, and rapid discharges it into the Pre-filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.
  • 2.Energy-saving and Environmental Protection KNOKOO fume extractor creates a powerful Systemic Flow 200m³/h to exhaust and purify air, high purification rate allow you to breathe fresh air again. Frequency converter DC motor, less power consumption, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment, environmentally friendly.
  • 3.Universal Smoking pipe-360-degree universal adjustment, no need for external support. Can adjust the length of the pipe freely, adjustable air volume, directional adjustment of the air duct, and free positioning.
  • 4.SIMPLE OPERATION AND INSTALLATION- Installation is simple and convenient, no additional pipes are needed, saving space.
