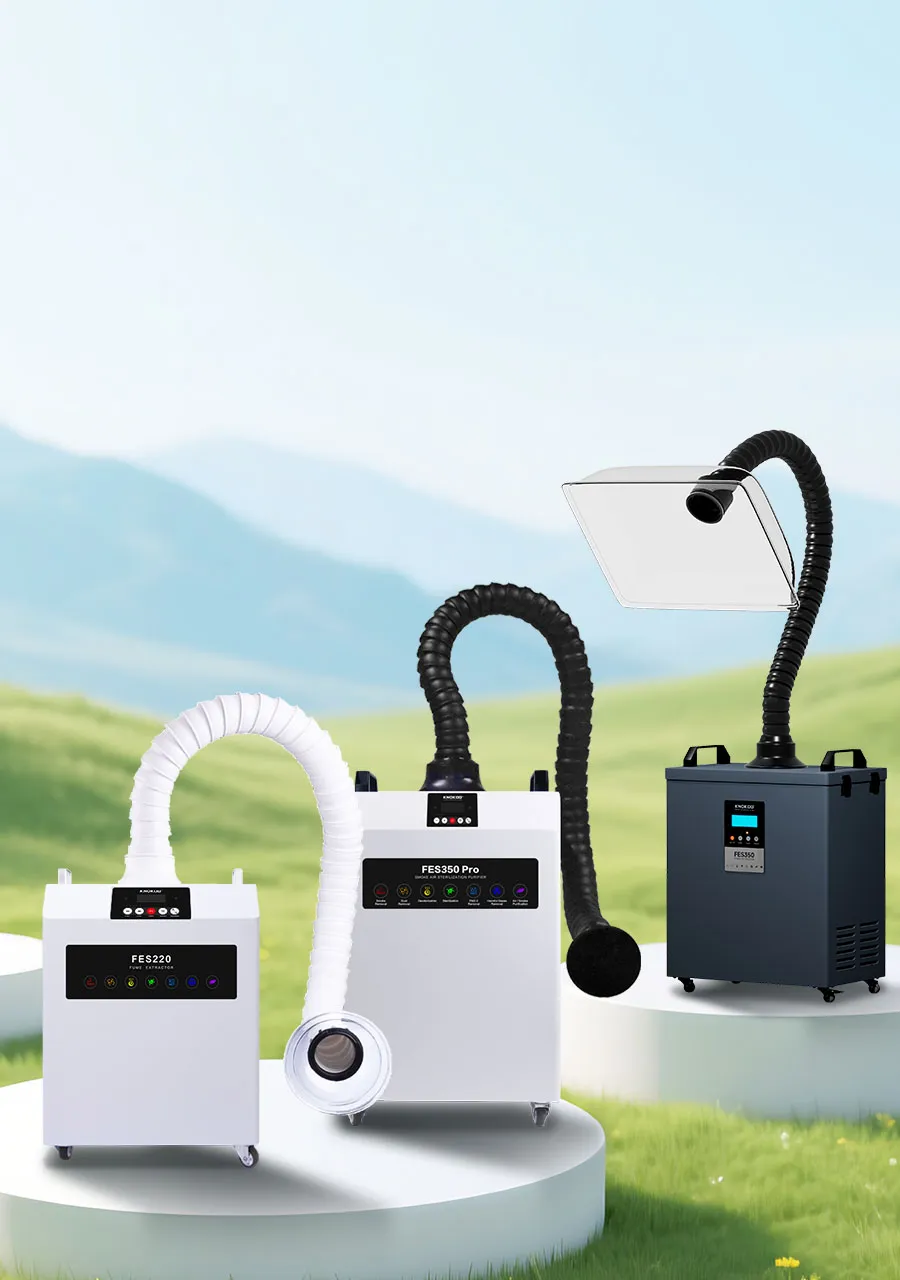

FES350 / FES220 / FES350pro

Powerful Fume Extractor For Medical Or Laser

Beautiful strong multiple filtering

KNOKOO FES030 Desktop MINI Solder Smoke Absorber Remover Fume Extractor for laser cutter DIY Electric Iron Welding.Fume Extractor Soldering 350W 430 m³/h Strong Suction | DTF Fume Extractor Activated Carbon 4 Stage Filtering for Laser Cutter Laser Engraver and Medical or Industrial use (350 Watts)

FES 350

POWER:  350W

Air Velovity :   430m3/h

FES 220

POWER:  220W

Air Velovity :   400m3/h

FES 350pro

POWER:  350W

Air Velovity :   460m3/h

Fume Extractor Soldering 350W 430 m³/h Strong Suction | DTF Fume Extractor Activated Carbon 4 Stage Filtering for Laser Cutter Laser Engraver and Medical or Industrial use (350 Watts)

FES 350

Four-layer Filtration System

1Pre-filter cotton

Filters large particles and reduces clogging.

Pre-filter cotton

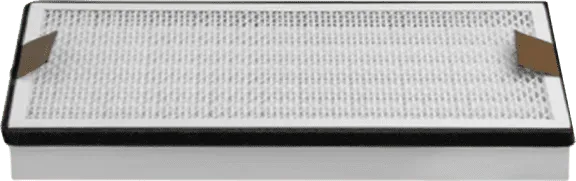

2Medium filter

Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.

Medium filter

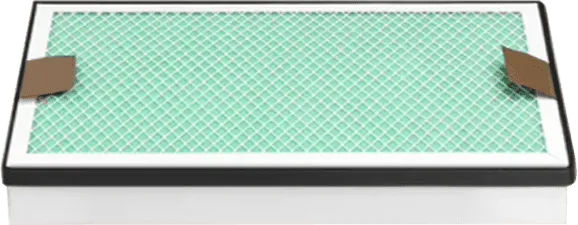

3Medium active carbon

Filter the small particles that can not beabsorbed by the upper level,and effectively absorb all kinds ofodors produced in the work.

Medium active carbon

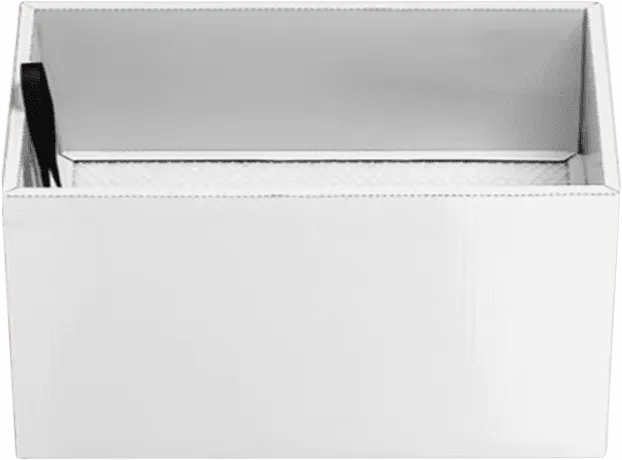

4High efficiency filter

High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.

High efficiency filter

FES 220

Three-layer Filtration System

1Pre-filter cotton

Filters large particles and reduces clogging.

Pre-filter cotton

2Medium filter( H13 HEPA FILTER )

Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.

Medium filter( H13 HEPA FILTER )

3High efficiency filter

High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.

High efficiency filter

FES 350pro

Four-layer Filtration System

1Pre-filter cotton

Prevent large particles from enteringthe next level of filter,reduce the risk of clogging,easy replacement.

Pre-filter cotton

2Oil suction filter

Absorbs water, blood, aerosols and oil.

Oil suction filter

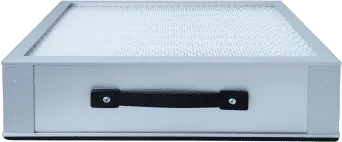

3Medium filter( H13 HEPA FILTER )

Filter the vast majority of small particulate matter, to reduce the burden of highefficiency filter, prolong the service life.

Medium filter( H13 HEPA FILTER )

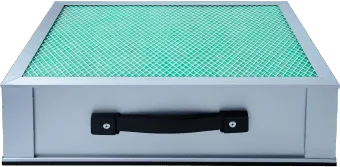

4High efficiency filter

High iodine value activated carbon,adsorption of various odors andtoxic and harmful gases andvolatile organic compoundsPrevent secondary pollution.

350 ' horsepower ' exhales the biggest roar like the small waves of the sea

350 ' horsepower ' exhales the biggest roar like the small waves of the sea
STANDARD ACCESSORIES

FES350

STANDARD ACCESSORIES
Machine

Machine*1

  • Primary Filter Cotton
  • Medium-effect Filter Layer
  • Main Filter Box

  • Primary Filter Cotton*4

  • Medium-effect Filter Layer*1

  • Main Filter Box*4

  • 1.4m Universal Tube
  • Exhaust Vent
  • Power Line

  • 1.4m Universal Tube*2

  • Exhaust Vent*2

  • Power Line*1

FES220

KNOKOO 220W Soldering Smoke Absorber FES220 Smoke Purifier welding plasma and laser cutting Engraving Printing Fume Extractor

  • Machine*1

  • 1.4m Universal Tube*2

  • Exhaust Vent*1

  • Primary Filter Cotton*1

  • Washing filter components*1

  • H13 filter component*1

  • Composite high efficiency carbon filter element*1

  • Power Line*1

FES350pro

KNOKOO 350W Laser Fume Extractor FES350 Pro Disinfection Kill Bacteria Smoke Absorber suit for Dental Clinic and Laser Engraving
  • Machine

    Machine*1

  • 1.4m Universal Tube

    1.4m Universal Tube*2

  • Exhaust Vent

    Exhaust Vent*1

  • Primary Filter Cotton

    Primary Filter Cotton*1

  • Washing filter components

    Washing filter components*1

  • H13 filter component

    H13 filter component*1

  • Composite high efficiency carbon filter element

    Composite high efficiency carbon filter element*1

  • Power Line

    Power Line*1

PRODUCT DETAILED PARAMETERS

  • Optional color

    OUTPUT VOLTAGE

    POWER

    AIR INLET INTERFACE

    SUCTION

    FILTER LAYERS

    NOISE

    SMOKE TUBE LENGTH

    FILTRATION EFFECT

    DISPLAY MODE

    SIZE

    NET WEIGHT

  • Fume Extractor Soldering 350W 430 m³/h Strong Suction | DTF Fume Extractor Activated Carbon 4 Stage Filtering for Laser Cutter Laser Engraver and Medical or Industrial use (350 Watts)
    FES350
    BUY

    AC 110V/220V

    350W

    Φ50 or Φ75

    430m3

    4Layer

    ≤60dB

    1.4m

    >0.3μm 99.97%

    LED Screen

    410*260*450mm

    ≈22kg

    KNOKOO 220W Soldering Smoke Absorber FES220 Smoke Purifier welding plasma and laser cutting Engraving Printing Fume Extractor
    FES220
    BUY

    AC 110V/220V

    220W

    Φ75

    400m3

    3Layer

    ≤60dB

    1.4m

    >0.3μm 99.97%

    LED Screen

    400*310*510mm

    ≈15.9kg

    KNOKOO 350W Laser Fume Extractor FES350 Pro Disinfection Kill Bacteria Smoke Absorber suit for Dental Clinic and Laser Engraving
    FES350PRO
    BUY

    AC 110V/220V

    350W

    Φ50 or Φ75

    460m3

    4Layer

    ≤60dB

    1.4m

    >0.3μm 99.97%

    LED Screen

    400*300*560mm

    ≈26.5kg

  • FES350
  • • KNOKOO Solder fume extractor have higher power, stronger suction and more efficient purification efficiency than ordinary soldering fans and other low power smoke absorber. HEPA filter and carbon filter can absorb smoke, harmful gases and unpleasant odors, smoke extractors can achieve 99.97% purification efficiency, so that you enjoy the pure air.
  • • Multiple filtration system (4 layers) -The 4-layer filtration system can handle welding, soldering, laser printing, laser engraving, Nail salon,beauty work,3D printing, DTF printing smoke, harmful gases and unpleasant odors. Say goodbye to fume！each layer can be replaced separately. Three -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving.
  • • Energy-saving and Environmental Protection KNOKOO fume extractor creates a powerful Systemic Flow 430m³/h to exhaust and purify air, high purification rate allow you to breathe fresh air again. Frequency converter DC motor, less power consumption, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment, environmentally friendly.
  • • 350W STRONG SUCTION POWER, LOW NOISE less than 60dB. Strong motivation and quietness are all for you. KNOKOO used DC motor, less power consumption, lowe noise, smoke filtered and discharged into the air, in line with the requirements of environmental impact assessment.The power is 87.5% larger than the 80W machine on the market, the suction power is greater, the noise is not increased, and the smoke absorption and purification effect is more better.
  • • 360-degree universal adjustable smoking duct - The suction pipe is composed of many shortened pipes and each interface can be bent freely, greatly improving the adjustment angle.Power Failure Protection: When the machine is working, turning off the three-in-one switch on the side will automatically cut off the power.
  • FES220
  • • Applicable fields: Soldering robot, tin furnace, Laser cutting, laser marking, laser engraving, DIY Solder Working and metal cutting. 99.97% FILTER PURIFICATION EFFECT, can bring you a fresh indoor air, do not be troubled by smoke and smell.
  • • Laser marking fume extractor purification machine FES220 uses a microcomputer chip to control the digital display remote control. Multi-layer filtration, rapid purification. The use of multiple filtration design ensures more thorough purification of harmful smoke and dust. Carry out innovative noise reduction structure design to make the working environment more peaceful and pleasant.
  • • The air inlet adopts a split-flow design so that harmful gas particles and harmful gases can be more fully filtered by HEPA filter and absorbed by activated carbon filter cotton, which greatly improves the filtration efficiency.
  • • Multiple filtration system (3 layers) - KNOKOO fume absorber continuously exhaust the welding fume and lead mist, and rapid discharges it into the Pre-washale filter, HEPA filter and activated carbon filter to purifier smoke and unpleasant odors. each layer can be replaced separately. Four -layer filter Structure has larger dust capacitance than single-layer filter core, longer service time of filter core and more cost-saving
  • • Laser Soldering Fume extractor FES220 has Wide range of applications: Smoke Removal, Dust Removal ,Laser smoke purifier, DTF Printer Harmful Gases Removal ,Beauty nail salon, Printing and Soldering.
  • FES 350PRO
  • The appearance is simple and generous, steady and elegant. The integrated design of the fuselage adopts a metal frame structure and a high-quality cold-rolled steel plate electrostatic spraying process, which is durable.
  • 1. Product advantages
  • • High-quality plastic handles are installed on both sides, which feel delicate, stable and reliable, and easy to carry.
  • • The unique curve design of the air inlet flange is more in line with the principles of fluid dynamics.
  • • Install a humanized stepless speed regulator to adjust the air volume and suction force at will.
  • • The product is small in size and does not require installation, which is conducive to a neat and beautiful working space and easy to move.
  • 2. Fan
  • • Adopts a DC brushless motor with a built-in controller, and the performance and quality are more guaranteed.
  • • Stable operation, low noise, high efficiency, low energy consumption, and long working time. No regular maintenance is required, and the cost is lower.
  • • The wind wheel adopts a vortex backward design and a special alloy material to effectively prevent the wind wheel from being corroded. The unique dynamic balance correction technology makes the wind wheel run more smoothly and reliably. High air volume, large suction, and higher filtration rate.
  • 3. Filter system
  • • Adopts a quadruple filtration design.Filter layer by layer to ensure that harmful smoke and dust are filtered out more thoroughly. The purification rate can reach 99.99%.
  • • Modular design, layer by layer protection. Primary, medium, activated carbon, and high efficiency can be replaced separately, the filter element has a longer service life and a lower replacement cost.
  • • The unique internal sealing structure, coupled with special sealing materials, allows all harmful substances to pass through the filtration system, with higher filtration efficiency.
  • • The built-in circulating active filtration method avoids discharging indoor cold air/heating air to the outside, and does not damage the temperature and humidity environment of the operating area.
  • 4. Smoke collection device
  • • The machine is equipped with a universal smoking arm, which can be changed and positioned at will (the length can be customized according to customer requirements). The end is equipped with a new type of smoke collection hood with a unique shape and higher smoking efficiency.
  • • Simple installation and easy use, no need to lay additional pipes.
