FES150

FES 600

POWER: 600W

AIR FLOW: 620m³/h

FES 800

POWER: 800W

AIR FLOW: 810m³/h

FES 600

Up to 5 layers of filtration (optional)

1Spark filter (optional)

Block open flame sources such as sparks and sparks in the smoke

2Primary filter layer

(optional reusable washable material)

Filter dust, debris and other large particles(PM60)

Not washable

OR

Washable

3Advanced filter layer

(3 layers in total, which can be combined as needed)

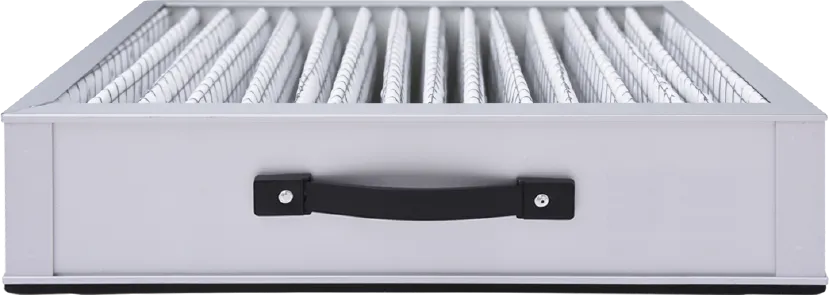

Oil-absorbing filter

Filter oil stains and liquids

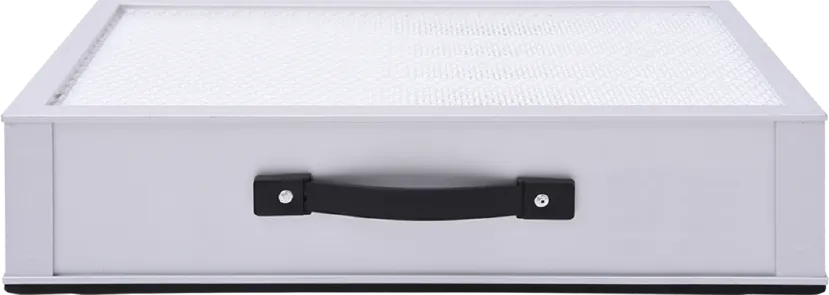

H13 HEPA Filte

Filter dust, asbestos and other fine particles and Adsorption of tar and other substances(≥0.3um)

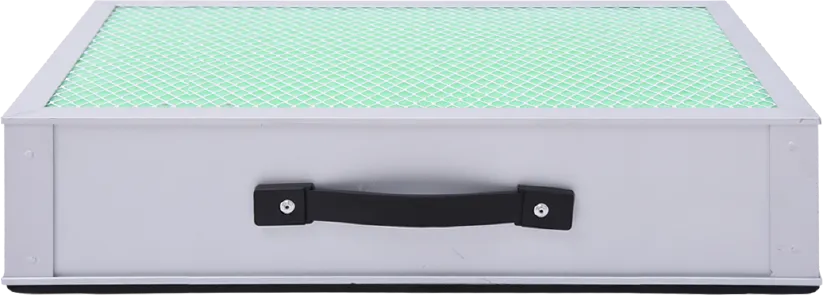

Activated carbon filter

Filter flue gas and harmful gas

FES 800

Up to 6 layers of filtration (optional)

1Spark filter (optional)

Block open flame sources such as sparks and sparks in the smoke

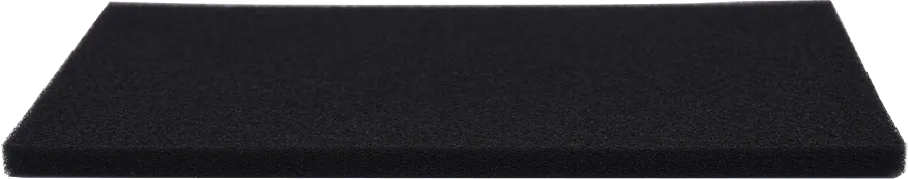

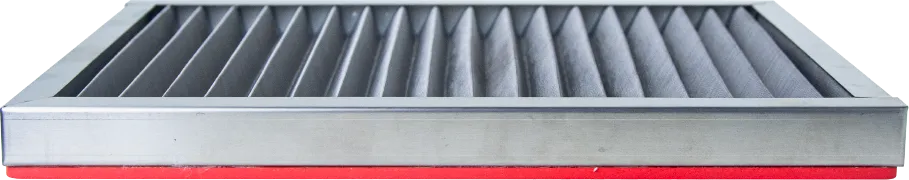

2Primary filter layer

(optional reusable washable material)

Filter dust, debris and other large particles(PM60)

Not washable

OR

Washable

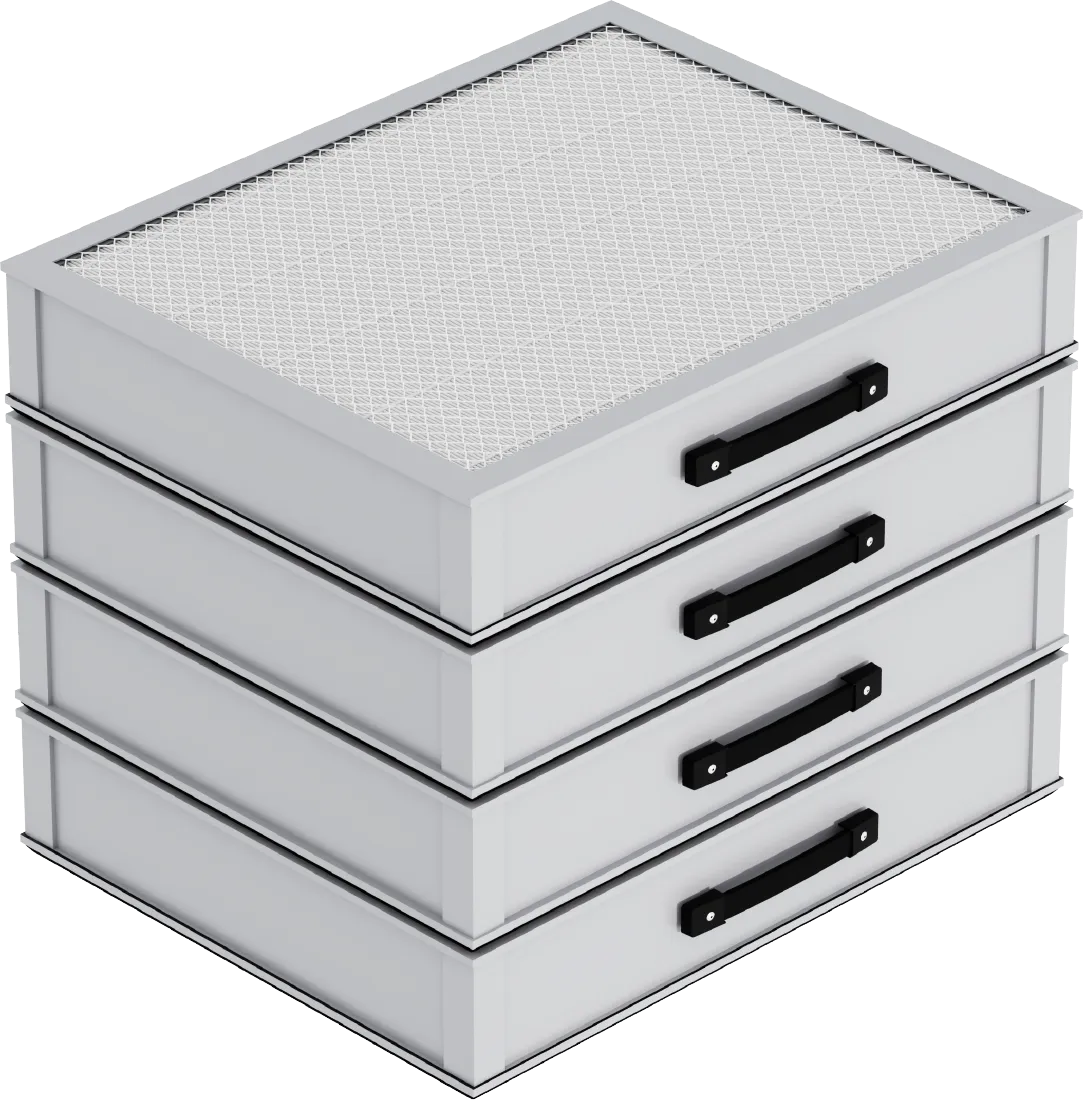

3Advanced filter layer

(4 layers in total, which can be combined as needed)

Oil-absorbing filter

Filter oil stains and liquids

H13 HEPA Filte

Filter dust, asbestos and other fine particles and Adsorption of tar and other substances(≥0.3um)

Activated carbon filter

Filter flue gas and harmful gas

STANDARD ACCESSORIES

FES600

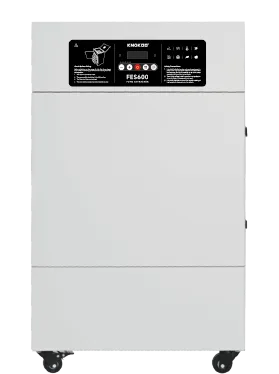

Host*1

(optional) Spark filter*1
Primary filter layer*1
Power line*1

1.4m hose*2
Advanced filter layer (optional)*3
Hose adapter*2

FES800

Host*1

(optional) Spark filter*1
Primary filter layer*1
Power line*1

1.4m hose*2
Advanced filter layer (optional)*8
Hose adapter*2

PRODUCT DETAILED PARAMETERS

OUTPUT VOLTAGE
POWER
AIR INLET INTERFACE
SUCTION
FILTER LAYERS
NOISE
SMOKE TUBE LENGTH
FILTRATION EFFECT
DISPLAY MODE
SIZE
NET WEIGHT
FES600
Buy
AC 110V/220V
60W
Φ50
160m³/h
5-Layer
≤52dB
0.75m
>0.3μm 99.97%
Button Switch
185*185*300mm
≈4.3kg
FES800
Buy
AC 220V / 50Hz
800W
Φ100
810m³/h
6-layer
≤68d
1.4m
>0.3μm 99.97%
LED Display
580*415*1010mm
≈80.0kg

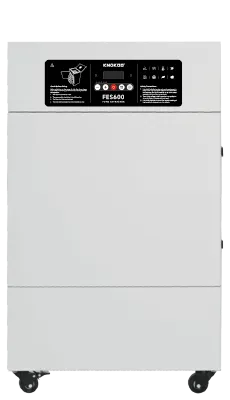

FES600
The FES600 is a medium-sized smoke purifier with an attractive appearance, multi-stage filtration, and a small footprint. It is generally used in places with a large amount of smoke and a strong odor, such as tin furnaces, argon arc welding, reflow soldering, wave soldering, and 1 to 6 manual soldering stations.
1.The body adopts all-metal integrated structure, high quality sheet metal spray technology, can resist strong impact and vibration.
2.Digital display, more intuitive parameters, push-button operation, can be timed, and can be remotely operated with a remote control.
3.Ten levels of adjustment make it convenient to precisely adjust the appropriate air volume as needed, which is more efficient, energy-saving and environmentally friendly.
4.High-performance brushless motor, high speed, low noise, stable operation, capable of continuous 24-hour operation, and long service life.
5.Aerospace-grade aluminum vortex wind turbine, with strong wind force, stable operation and low noise, makes the working environment more comfortable and quieter.
6.5-layer tower filtration design, with fireproof steel mesh added at the top, effectively intercepts laser sparks and ensures more thorough filtration.
7.Filter element clogging alarm, automatically detects the change in pressure difference of the filter layer, and issues an audible and visual alarm signal when the filter element is clogged.
8.The filter elements can all be replaced separately, effectively extending the service life of the main filter element, improving efficiency and reducing the usage cost.
9.Standard configuration: 110MM high-temperature resistant 3-meter expansion pipe, with good matching, simple and convenient connection, and long service life.
10.The air is filtered through internal circulation to prevent the indoor cold or warm air from being discharged to the outside and to maintain the cleanliness of the indoor air.
11.The bottom of the machine is equipped with a silent PU wheel with a locking function, which is convenient for adjustment and movement as needed, saving both effort and worry.
12.It can be assembled and used in just three steps after disassembly. The installation is simple and no professional technicians are needed for maintenance, saving human and material resources.

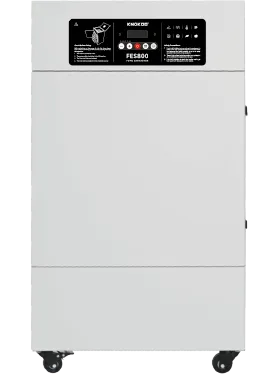

FES800
The FES800 is a medium-sized smoke purifier with an attractive appearance, multi-stage filtration, and a small footprint. It is generally used in large tin furnaces, argon arc welding, reflow soldering, wave soldering, and 1-to-8 manual soldering stations where there is a large amount of smoke and a strong odor.
1.The body adopts an all-metal integrated structure and high-quality sheet metal powder coating process.
2.It can resist strong impacts and vibrations.
3.Digital display, more intuitive parameters, push-button operation, can be timed, and can be remotely operated with a remote control.
4.With ten levels of adjustment, it is convenient to precisely adjust the appropriate air volume as needed, which is more efficient and energy-saving.
5.High-performance brushless motor, high speed, low noise, stable operation, capable of continuous 24-hour operation, and long service life.
6.Aerospace-grade aluminum vortex wind turbine, with strong wind force, stable operation and low noise, makes the working environment more comfortable and quieter.
7.The 6-layer tower filtration design, with fireproof steel mesh added at the top, effectively intercepts laser sparks and ensures more thorough filtration.
8.Filter element clogging alarm: Automatically detects changes in the pressure difference of the filter layer. When the filter element is clogged, it will issue an audible and visual alarm signal.
9.The filter elements can all be replaced separately, effectively extending the service life of the main filter element, improving efficiency and reducing the usage cost.
10.Standard equipped with 110MM high-temperature resistant 3-meter expansion pipe, it has good matching performance, simple and convenient connection, and a long service life.
11.The air is filtered through internal circulation to prevent the indoor cold or warm air from being discharged to the outside and to maintain the cleanliness of the indoor air.
12.The bottom of the machine is equipped with a silent PU wheel with a locking function, which is convenient for adjustment and movement as needed, saving both effort and worry.
13.It can be assembled and used in just three steps after disassembly. The installation is simple and no professional technicians are needed for maintenance, saving human and material resources.
